Leofoto LF-75 video tripod + VT-20 video head

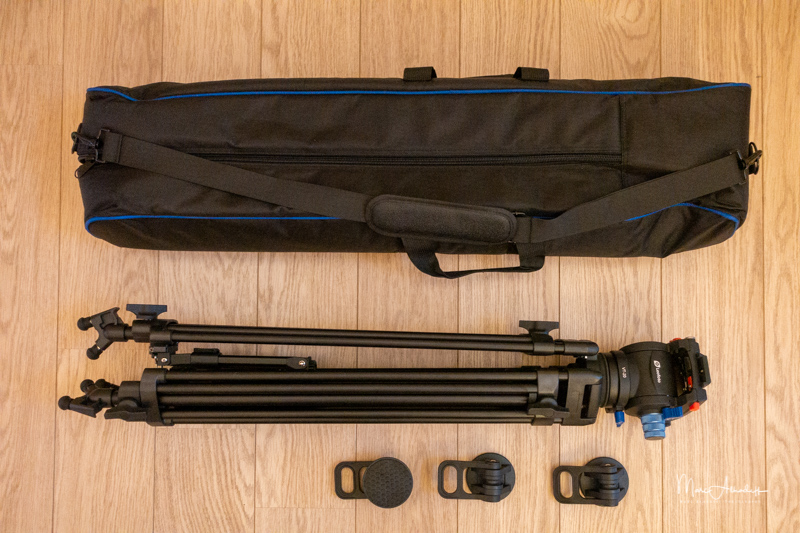

Leofoto LF-75 + VT-20-04

in Blue English / en noir en Français

  1. Presentation
  2. Functionalities  / Fonctions
  3. Conclusion

1 Presentation

Thanks to Degreef & Partner , I could test the Leofoto Video Tripod LF-75 +  its VT20 Video head (300 euros)

Leofoto is a relatively recent Chinese brand of High quality tripod. They are produced by Zhongshan Laitu photographic Equipment Co,

Unlike other Leofoto tripod this one is not in carbon fiber but in classical aluminium , it is made for heavy duty video work

Grâce à  Degreef & Partner , J’ai pu tester le trépied video Leofoto LF75 et sa tete vide VT20 (300 euros)

Leofoto est une marque chinoise relativement récente qui fabriquent des trépieds de haute qualité. Ils sont fabriqué par Zhongshan Laitu photographic Equipment Co,

Contrairement aux autres trépieds Leofoto la plupart en carbone ce trépied vidéo est en Aluminium et a été conçu assurer un maximum de stabilité pour les tournages vidéo

1.1 Specifications

  • Price : 300 euros in kit with VT20
  • Tripod
    • Load capacity : 20kg for the tripod
    • Folded length : 88cm
    • Height
      • Minimum 86cm
      • Max : 182cm
    • Diametre : 15cm
    • 3 sections with a screw to fix them at desired length
    • Material :
      • Aluminium
    • Warranty : 10 years
    • Weight : 5,24kg (with video head)
    • Base half bowl size for the head : 75mm
    • 1 Bubbles level
    • Accessories
      • Bag
      • Special Foot
      • Multi functional tool and Allen key
  • VT20 Ball head
    • Load capacity : 10kg unbalanced, 4 kg balanced
    • Tilt range : +90° / – 75°
    • 360° panning
    • Tilt friction
    • Long Arm
    • 1 Bubbles level

Globally the whole set is of very high quality , very robust and stable

  • The Tripod is equipped with built-in adjustable Spreader providing rock solid Stability
  • rotating foot allow to adapt to unequal surface and spike allow to adapt to difficult ground
  • The Video head allow for Tilt with friction and Pan without friction
  • The Ball Head can be un mount and put on a slider if you wish
  • The Tripod is relatively heavy (5kg) and big (15cm diameter) , thankfully it is provided with a dedicated bag.

Those video tripod are bulky but they are designed to have maximum stability to ensure smooth movement when panning or tilting

Leofoto LF-75 + VT-20-01



1.1 Specifications

  • Prix : 300 euros en kit avec la rotule VT20
  • Tripod
    • Poids supporté : 20kg
    • Longueur fermé : 88cm
    • Hauteur
      • Minimum : 86cm
      • Max : 182 cm
    • Diamètre : 15cm
    • Matériaux :
      • Aluminium
    • 3 sections
    • Garantie : 10 ans
    • Poids :  5240 g avec rotule
    • 1 niveau à Bulle
    • Support pour tete video en demi bol de 75mm de diamètre
    • Accessoires
      • Sac de transport
      • Pieds rotatif
      • Outil multifonctions et clés Allen
  • Tête video VT20
    • Poids supporté : 10kg non balancé , 4 kg balancé
    • Mouvement Vertical : +90° / -75°
    • Amorti pour le mouvement vertical
    • Panoramique non amorti tu 360°
    • Bras de commande avec revêtement en mousse pouvant être fixée des deux cotés
    • 1 niveau à Bulles

Globalement l’ensemble respire la qualité, le trépied est très robuste

  • Le trépied est équipé d’écarteur réglables pour ajuster l’écartement des jambes du trépied
  • Les supports de pieds rotatif et anti dérapant s’adapte a tout sol inégal, les supports à pointes permettent une très bonne fixation dans les sols difficiles
  • La fête video permet un mouvement vertical amorti et un mouvement panoramique non amorti
  • La tête peut être démonté pour une utilisation sur un rail si nécessaire
  • Le trépied est relativement lourd (5kg) et gros (15cm de diamètre) mais il est heureusement fourni avec un sac de transport dédié

Ces trépied videos sont encombrant par nature car ils assurent une stabilité a toute épreuve pour avoir des mouvement de rotation fluide cet sans à coup lors d’un tournage



2 Functionalities / Fonctionalités

2.1 Basic Operations / Fonctions de bases

  • 3 sections legs with sliding mechanism , fixation thanks to a big screw easy to manipulate
  • Adjustable Spreader allow to adjust the angle of the legs for each leg individually
  • Each foot has 2 ends which can be either a spike or a rubber end
  • L’ouverture des 3 sections se fait aisément avec un système à sections coulissantes et se fixe grâce à une grande vis
  • Ecarteur variable ; permet d’augmenter la stabilité entre les pieds et de régler l’écartement entre ceux ci de manière individuelle
  • Les pieds sont constitués de 2 pointes soit en caoutchouc soit métalliques pour les sols difficiles

2.2 Height / Hauteur

The 3 main positions are : 860mm, 1330mm & 1820mm, So you can really reach a very tall position if required

Les 3 positions principales sont : : 860mm, 1330mm & 1820mm, On peut donc atteindre une très grande hauteur si nécessaire

Leofoto LF-75 + VT-20-15

619qmZsYMvL._AC_SL1200_leofoto-lf-75-video-tripod-with-vt-20-fluid-video-head

Leofoto LF-75 + VT-20-13

Leofoto LF-75 + VT-20-17

Leofoto LF-75 + VT-20-18

Leofoto LF-75 + VT-20-28

Screw to fix the leg closed position / vis pour fixer les jambes position fermée

Leofoto LF-75 + VT-20-27


Screw to fix the leg : open position / vis pour fixer les jambes position ouverte

2.3 Spreader / Ecarteur

The Spreader has 2 functions

  • Increase overall stability
  • Choose the angle of the leg. Here we can adjust it on a continuous basis as there is no predefined angle position. Each leg can be adjusted individually

La fonction de l’écarteur est double

  • Augmenter la stabilité de l’ensemble
  • Permettre de choisir l’angle entre les jambes. ici le réglage est continue (pas de position prédéfinie) et peut être fait individuellement pour chaque pied

Leofoto LF-75 + VT-20-25Leofoto LF-75 + VT-20-24Leofoto LF-75 + VT-20-23

61D949h56aL._AC_SL1200_

Leofoto LF-75 + VT-20-26

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,2 à ISO 3200-361



2.4 Foot / Pieds

  • The standard foot is made of 2 metallic spike protected by a rubber ball
  • You can also add a plane rotating foot on top of them with an anti slip surface
  • Le pied est constitué de 2 pointes métalliques recouvertes par une protection en caoutchouc
  • On peut ajout un pied rotatif munie d’un surface anti dérapante

Leofoto LF-75 + VT-20-21Leofoto LF-75 + VT-20-20Leofoto LF-75 + VT-20-19

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,0 à ISO 3200-351

Spike / pointes

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 1,4 à ISO 1250-352

Spike / pointes

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,0 à ISO 2500-348

Rotating foot with anti slip surface / Pied rotatif avec surface anti dérapante

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,2 à ISO 2500-355

Rotating foot with anti slip surface / Pied rotatif avec surface anti dérapante

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,2 à ISO 8000-354

Rotating foot with anti slip surface / Pied rotatif avec surface anti dérapante

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,2 à ISO 8000-356

Rotating foot with anti slip surface / Pied rotatif avec surface anti dérapante

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,2 à ISO 2500-360

Rotating foot with anti slip surface / Pied rotatif avec surface anti dérapante

61WeMPa5utL._AC_SL1200_

  • There is also a metallic clip allowing to tight the  3 legs together for the transport
  • Il y a aussi une accroche métallique qui permet de solidariser les 3 jambes pour le transport

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,0 à ISO 5000-350

2.5 Leveling with the Bowl / removing  the head  – Mise à niveau avec le bol / retrait de la rotule video

When using your tripod on uneven surface , leveling the head require to adjust all three tripod legs independently. This process is time consuming, and it is difficult to achieve a perfectly level position

With a half bowl mount (75mm size) , it is much more easy : you untight the head from the bottom you adjust the level thanks to the bubble level and you tight it again

La mise a niveau d’un trépied sur un sol inégal nécessite un réglage individuel de chaque pied ce qui peut être long et reste souvent imprécis

Avec un support en demi bol (ici de taille 75mm) il suffit de dévisser légèrement la rotule vidéo , la mettre d’aplomb grâce au niveau intégré et resserrer

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,2 à ISO 3200-359

level adjusted on uneven ground thanks to the half bowl / niveau ajusté Sur un sol inégal grâce au demi bol

leofoto-trepied-video-lf-75-avec-tete-de-trepied-vt-20



Leofoto LF-75 + VT-20-22





2.6 Video Ball head VT20 / Rotule video fluide VT20

The Video Ball head VT-20 is a classical video ball head that allow to control the fluidity  of the Tilt movement and to Pan on 360° with the help of a arm

The build quality is good

Features

  • Tilt Fluidity control
  • Possibility to mount the Arm on left or right side
  • Possibility to add a magic arm to support a screen
  • Bubble level
  • Red lock to unlock the plate + button to push to really remove the plate. Without pushing on this button  a protection mechanism  prohibit the plate to slide out of the ballhead accidentally
  • Lock for the tilt movement
  • Lock for the pan movement

The 2 features missing for me are a control of the fluidity for the pan movement and a counter balance system to allow the setup to stay in the same position whatever the angle of tilt selected without requiring to lock the tilt mechanism

Those kind of feature are e.g. offered on the Manfrotto Nitrotech N608 (500 euros) but this head one is costing almost 2 times the kit of Leofoto Tripod + video head

Another possible usage of the video head is to use it on a classical tripod or on a slider: you will need to completely unscrew the half bowl from the head. This require a little bit of tooling and strength the first time as they are very tightly locked from the factory



713wIFySdUL._AC_SL1200_

La rotule video VT-20 est une rotule vidéo classique  qui permet de contrôler la fluidité du mouvement vertical et de pivoter sur 360° avec  l’aide d’un bras

La qualité de fabrication est bonne

Spécifications

  • Contrôle de la fluidité pour le mouvement vertical (Tilt)
  • Possibilité de monter le bras des deux côtés
  • Possibilité de monter un bras magique pour par ex un écran externe
  • Niveau à bulle
  • Vis de fixation rouge pour le plateau + bouton à pousser pour libérer le plateau (en sécurité pour éviter que le plateau ne glisse de la rotule)
  • Vis fixation pour le mouvement horizontal
  • Vis de Fixation pour le mouvement vertical

Les 2 fonctions qui manquent sont un contrôle de la fluidité du mouvement panoramique et un mécanisme de contrepoids pour permettre que l’ensemble reste immobile dans n’importe quel position sans devoir tenir le bras

Ce genre de fonctionnalité est offert sur les têtes vidéo plus haut de gamme comme la Manfrotto Nitrotech N608 (500 euros) mais on est dans une autre gamme de prix !

Une autre utilisation possible de la rotule video est de l’utiliser sur un trépied classique ou un rail. pour cela il faudra dévisser complètement le demi bol de la rotule.  Cela nécessite d’avoir une grosse clé anglaise et un peu de force , les 2 éléments étant très serrés à la sortie d’usine

Leofoto LF-75 + VT-20-06Leofoto LF-75 + VT-20-07

Leofoto LF-75 + VT-20-10

Big blue button control the friction / le gros bouton bleu contrôle la friction

Leofoto LF-75 + VT-20-05

Leofoto LF-75 + VT-20-12

fixation of the Arm / fixation du bras

Leofoto LF-75 + VT-20-11

Leofoto LF-75 + VT-20-32

Leofoto LF-75 + VT-20-34

unmounting the Half bowl / démontage du demi bol

Leofoto LF-75 + VT-20-33

The plate is long enough to hold any type of cage / camera / lens, it  has the 2 size of screws and an anti slip cover

Le plateau fourni est assez long pour supporter tout type de cage/boitier/objectif , il comprend les 2 tailles standard de vis et un revêtement anti dérapant

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 2,5 à ISO 5000-344

The plate / le Plateau

56mm F1.4 DC DN | Contemporary 018 at 56 mm - ¹⁄₁₀₀ s à ƒ - 1,4 à ISO 1600-343

The plate / le Plateau



2.7 Stability/Fluidity of the video head / Stabilité et fluidité de la tête vidéo

I tested the stability with the Sony A7RIII and the 200-600mm which is a little below 3kg, this is well below the max 10Kg supported. The setup is very stable and the tilt movement of the video head are very fluid thanks to the friction control. The pan movements are less good and depending on your skills as there is no friction control for pan movement

J’ai testé la stabilité de l’ensemble avec le Sony A7RIII et le Sony 200-600mm , un ensemble un peu en dessous des 3kg (donc bien au dessous des 8kg max supporté). L’ensemble est solide  et stable, la rotule video permet des mouvements fluides verticaux en toute sérénité. Les mouvements panoramiques eux ne sont pas amortis donc la fluidité dépendra de vous

Leofoto LF-75 + VT-20-36Leofoto LF-75 + VT-20-35

3 Conclusion

The Leofoto video tripod LF75 + ballhead VT20 (300 euros)  is a good video tripod for regular use in all situations

The tripod is in Aluminium and a little bit on the heavy side but this is the case for most video tripod of this type .

It comes full fledged with everything  you could request from a video tripod  : triple braced legs, adjustable spreader, half bowl, spikes , rubberized feet… and it is providing excellent stability

The video head is well designed, secure, and easy to use. The tilt fluidity is working very well  but we miss fluidity control for pan movements

Globally it will satisfy regular videographer but professional will require a better head to have more fluid panoramic movement



3 Conclusion

Le trépied video LF75 avec sa tête vidéo VT20 (300 euros) est un bon trépied pour  une utilisation régulière!re en toutes situation

Le trépied est en Aluminium et est assez lourd (5.2kg) et massif mais c’est typique de ce genre de modèle de trépied vidéo

Il est équipé de tout ce que l’on peut demander d’un trépied vidéo : jambes coulissantes tubulaires, écarteur réglables , demi bol, pointes aciers, pieds antidérapants… et il fournit une excellente stabilité

La tête vidéo est très bien conçue et sécurisé et agréable à l’usage. Le contrôle de fluidité pour les mouvements verticaux est efficace mais on manque d’un contrôle de fluidité pour les mouvement panoramiques

Globalement ce kit satisfera les besoins des vidéographies amateurs et semi pro, mais les professionnels auront besoin d’une tête vidéo plus évoluée pour pouvoir contrôler la fluidité des mouvement panoramiques
